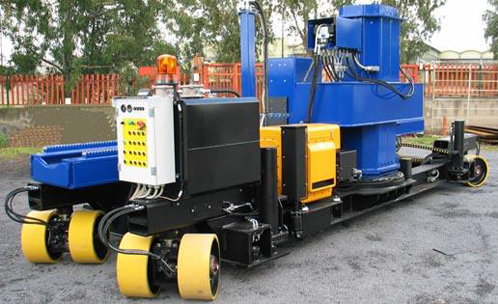

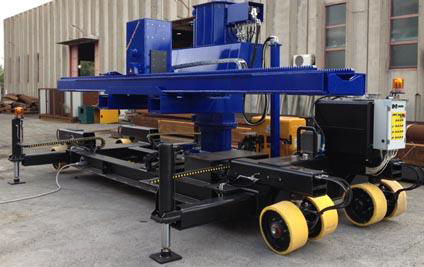

Self Propelled Bundle Pullers
The Self Propelled Bundle Extractor is 100% self sufficient. It's state of the art technology in the field of industrial maintenance equipment. It combines the properties of our truck mounted Bundle Extractor and of our trailer lift Bundle Extractor.
Just try the Self Propelled Bundle Extractor and this will become your trusty Hydraulic Tube Bundle Extractor.
All functions controlled by a remote control box.
Winch double speed directly controlled by the remote control box with an electric switch for continuous pulling and pushing of the bundles.
Maximum Working Height : 7000 mm / 22.9 feet
Minimum Working Height : 610 mm / 2 feet
Maximum Bundle Length : 8000 mm / 26.3 feet
Maximum Bundle Diameter : 2000 mm / 60.67”
Maximum Winch Pulling Force : 50,000 kg / 110,000 lbs
Maximum Bundle Weight (at minimum height) : 25,000 kg / 55,000 lbs
Maximum Bundle Weight (at maximum height) : 15,000 kg / 33,000 lbs
Winch Pulling Speed : 2800 mm / 9.18 feet
